Voxelized Foot Bones

A Region on a voxel-based mesh with uniform hexahedrons should be created with uniform=True to enhance performance.

This example requires external packages.

pip install pypardiso

Static Scene

Interactive Scene

import numpy as np
import pypardiso

import felupe as fem

mesh = fem.mesh.read("ex12_foot-bones_mesh-voxels.vtu")[0]

region = fem.RegionHexahedron(mesh, uniform=True)
field = fem.FieldContainer([fem.Field(region, dim=3)])
boundaries = {
    "fixed": fem.Boundary(field[0], fx=lambda x: x <= -110),
    "fixed_plane": fem.Boundary(field[0], fz=mesh.z.min()),
}

umat = fem.LinearElastic(E=1000, nu=0.3)
solid = fem.SolidBody(umat, field)
gravity = fem.SolidBodyForce(field, values=[0, 0, -7e-2])
bottom = fem.ContactRigidPlane(
    field,
    points=np.arange(mesh.npoints),
    centerpoint=-1,
    normal=[0, 0, 1],
    friction=0.0,
    items=[solid],
)

step = fem.Step(items=[solid, gravity, bottom], boundaries=boundaries)
job = fem.Job(steps=[step]).evaluate(solver=pypardiso.spsolve, parallel=True)

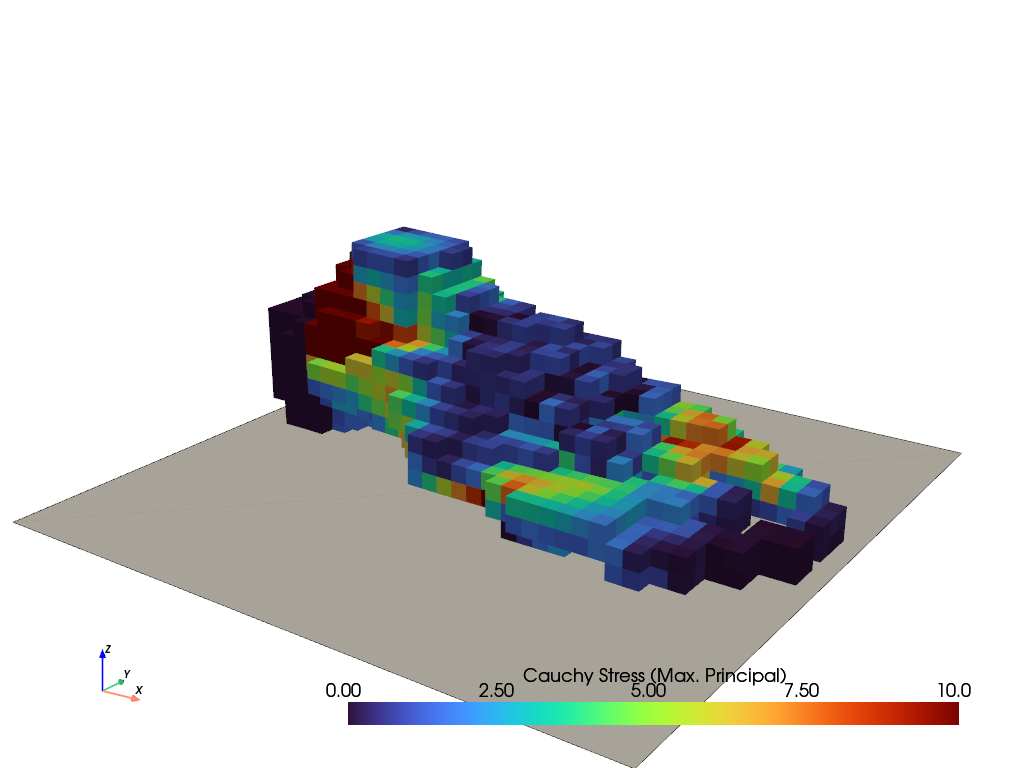

plotter = solid.plot(
    "Principal Values of Cauchy Stress",
    show_edges=False,
    show_undeformed=False,
    clim=[0, 10],
)
bottom.plot(plotter=plotter, color="lightgrey", opacity=1.0).show()
